Description

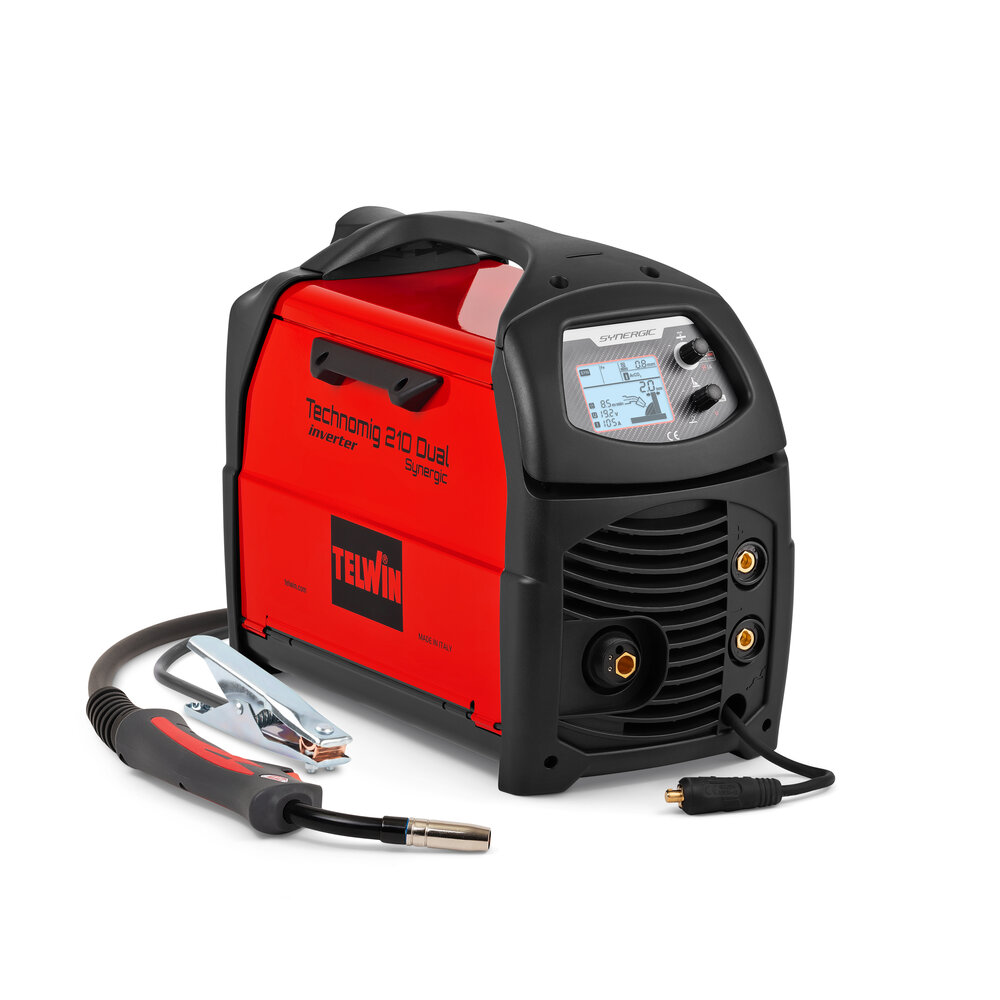

Microprocessor-controlled, MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift multiprocess inverter wire welding machine.
Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminum) or braze-weld (galvanized sheet).
The fast SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use.
The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder’s style.
The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.
Features:

• Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding;
• 25 synergy curves available;
• Visualization on the LCD of voltage, current, and welding speed;
• Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
• Choice of 2/4 times, spot operation;
• VRD device;
• Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Complete with MIG-MAG torch, work clamp, and cable.

TECHNICAL DATA

CODE 816231
SINGLEPHASE MAINS VOLTAGE 230 V
MAINS FREQUENCY 50 / 60 Hz
MAX NO LOAD VOLTAGE IN DC 52 V
CURRENT RANGE IN DC 20 - 200 A
MAX CURRENT DC EN60974-1 180 @ 20% A
CURRENT 35% DC 135 A
DC CURRENT AT 60% 100 A
MAX ABSORBED CURRENT 32 A
ABSORBED CURRENT AT 60% 15 A
MAX ABSORBED POWER 5 kW
ABSORBED POWER AT 60% 2,2 kW
EFFICIENCY 85 %
POWER FACTOR(cosphi) (cosphi) 0,7
D.USABLE ELECTRODES IN DC 1,6 - 3,2 mm
STEEL WELDING WIRE DIAMET. 0,6 - 1 mm
INOX WELDI.WIRE DIAMETER 0,8 - 1 mm
ALUM. WELDING WIRE DIAM. 0,8 - 1 mm
FLUX CORED WELDI.WIRE DIA. 0,8 - 1,2 mm
BRAZING WIRE DIAM. 0,8 - 1 mm
INSULATION CLASS H
PROTECTION DEGREE IP23m
DIMENSIONS (LxWxH) 46 x 24 x 36 cm
WEIGHT 13 kg

SUPPLIED ACCESSORIES
742180 MT15 MIG TORCH 3M (RED)
124589 CABLE TW05V-A 1X025 1.80M PLUG ATLAS
712030 TOLEDO 250 WORK CLAMP 250A
