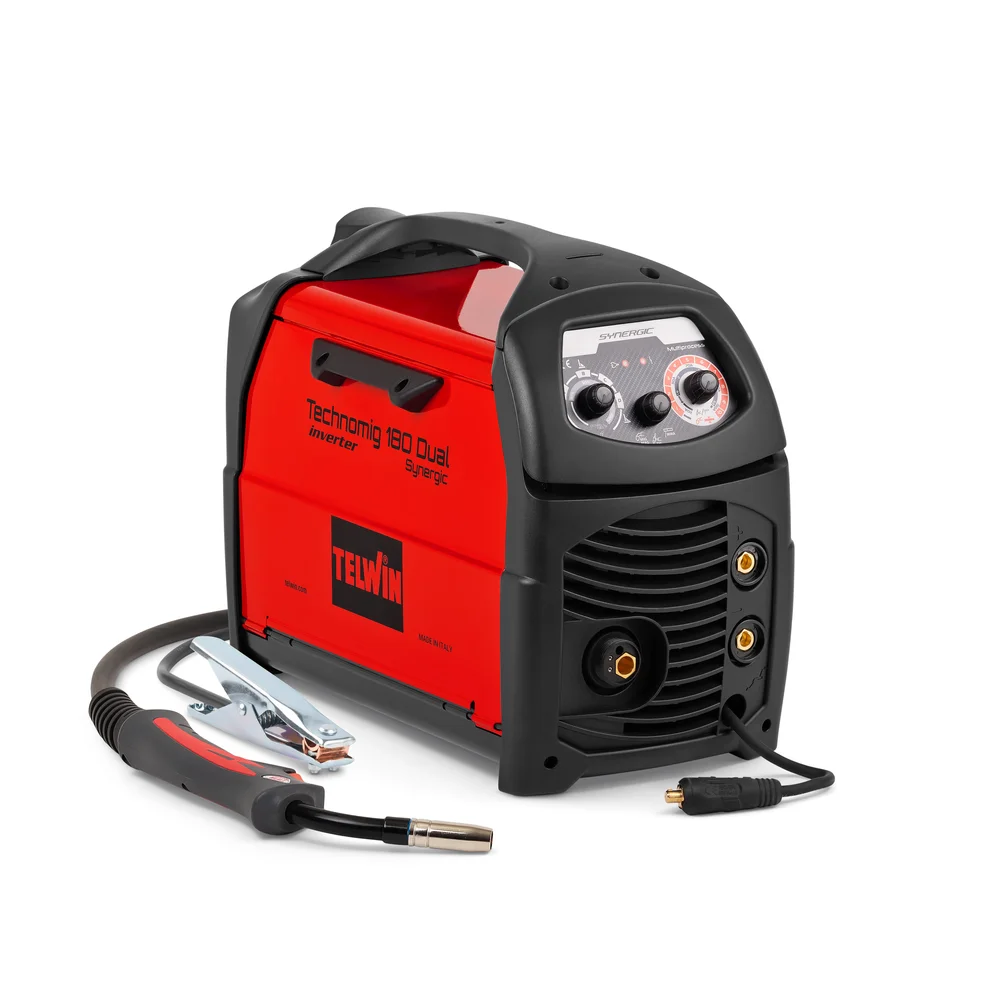

TECHNOMIG 180 DUAL SYNERGIC #TW-816075

TECHNOMIG 180 DUAL SYNERGIC #TW-816075

somdn_product_page
Category: Tags: ,

Description

Microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
Technomig is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminum), or braze-weld (galvanized sheet).
The fast SYNERGIC adjustment of the welding parameters, thanks to the “ONE TOUCH” technology, makes the product very easy to use.

Just set the material thickness and start welding: the intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder’s style.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.

Features:

  • Polarity reversal for GAS MIG-MAG/BRAZING welding;
  • Thermostatic, overvoltage, undervoltage, motorgenerator (+/- 15%) protections;
  • Arc-force adjustment in MMA;
  • Euro torch connection.
  • Complete with MIG-MAG torch, work clamp, and cable.
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 170A.
  • OneTouch synergic adjustment: easy to use. 9 pre-set synergic curves.
  • Max. spool 5 kg (Ø 100 and 200 mm). Polarity change for GAS MIG-MAG/BRAZE welding.
  • MMA: Advanced arc control devices: arc force, hot start, anti-stick.
  • Contained weight and compactness for easy transport.
TECHNICAL DATA
CODE-816075
SINGLEPHASE MAINS VOLTAGE-230V
MAINS FREQUENCY-50 / 60 Hz
MAX NO LOAD VOLTAGE IN DC-44 V
CURRENT RANGE IN DC-20 - 170 A
MAX CURRENT DC EN60974-1-140 @ 20% A
CURRENT 35% DC-100 A
DC CURRENT AT 60%-80 A
MAX ABSORBED CURRENT-22 A
ABSORBED CURRENT AT 60%-11 A
MAX ABSORBED POWER-3,2 kW FLUX
ABSORBED POWER AT 60%-1,6 kW
MAINS FUSE-16 A
EFFICIENCY-86 %
POWER FACTOR(cosphi) (cosphi)-0,7
D.USABLE ELECTRODES IN DC-1,6-3,2 mm
STEEL WELDING WIRE DIAMET.-0,6 - 0,8 mm
INOX WELDI.WIRE DIAMETER-0,8 mm

SUPPLIED ACCESSSORIES

742180 MT15 MIG TORCH 3M (RED)
712030 TOLEDO 250 WORK CLAMP 250A
124589 CABLE TW05V-A 1X025 1.80M PLUG ATLAS
