Description
Restore vehicle bodywork quickly and efficiently without damaging original paint finishes with the Telwin Pneumatic Vacuum Dent Puller (Code 804695). Engineered specifically for bodyshop professionals and automotive repair technicians, this heavy-duty pneumatic slide hammer uses compressed-air Venturi vacuum technology to create a ultra-strong suction seal on sheet metal panels.
By instantly attaching to flat or curved panels, it allows technicians to pop out large-area dents on car doors, roofs, and light commercial vehicle bodywork in seconds—eliminating the need for drilling holes, grinding off clear coats, or welding pull studs.
Key Features & Benefits
-
Paintless Dent Repair (PDR): Removes medium-to-large panel dents without disturbing or stripping the vehicle’s original factory paint coat.
-
Powerful Compressed Air Suction: Operating at a minimum of 4 bar air pressure, the integrated pneumatic vacuum generator creates a rock-solid seal on sheet metal.
-

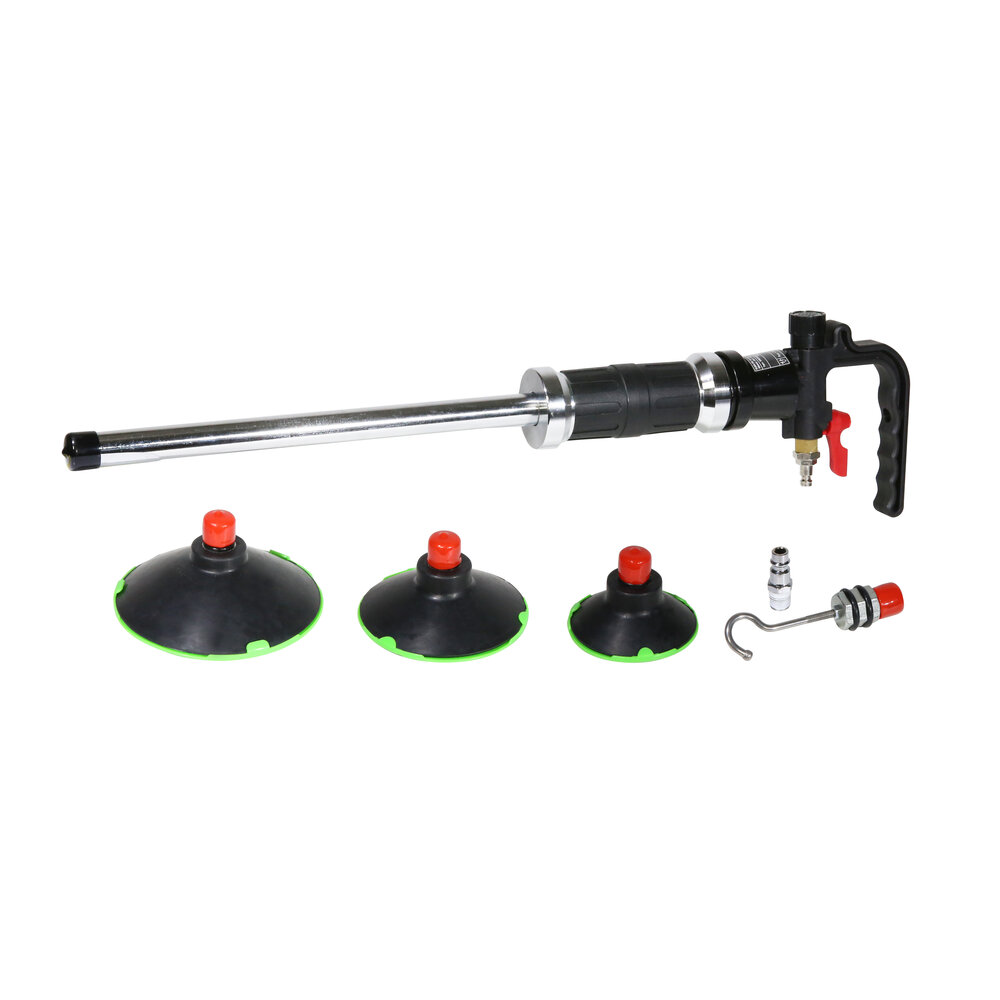

Complete 3-Size Suction Cup Kit: Includes interchangeable suction pads (Ø 75 mm, Ø 100 mm, and Ø 125 mm) to easily adapt to various dent sizes, contours, and panel profiles.
-
Heavy-Duty Slide Hammer Action: Integrated slide weight provides smooth, high-impact pull force directly aligned with the vacuum head for precise, controlled panel extraction.
-
Versatile Hook Attachment: Comes standard with the Vacuum Set + Hook assembly (804716) for optional mechanical pulling setups.
-

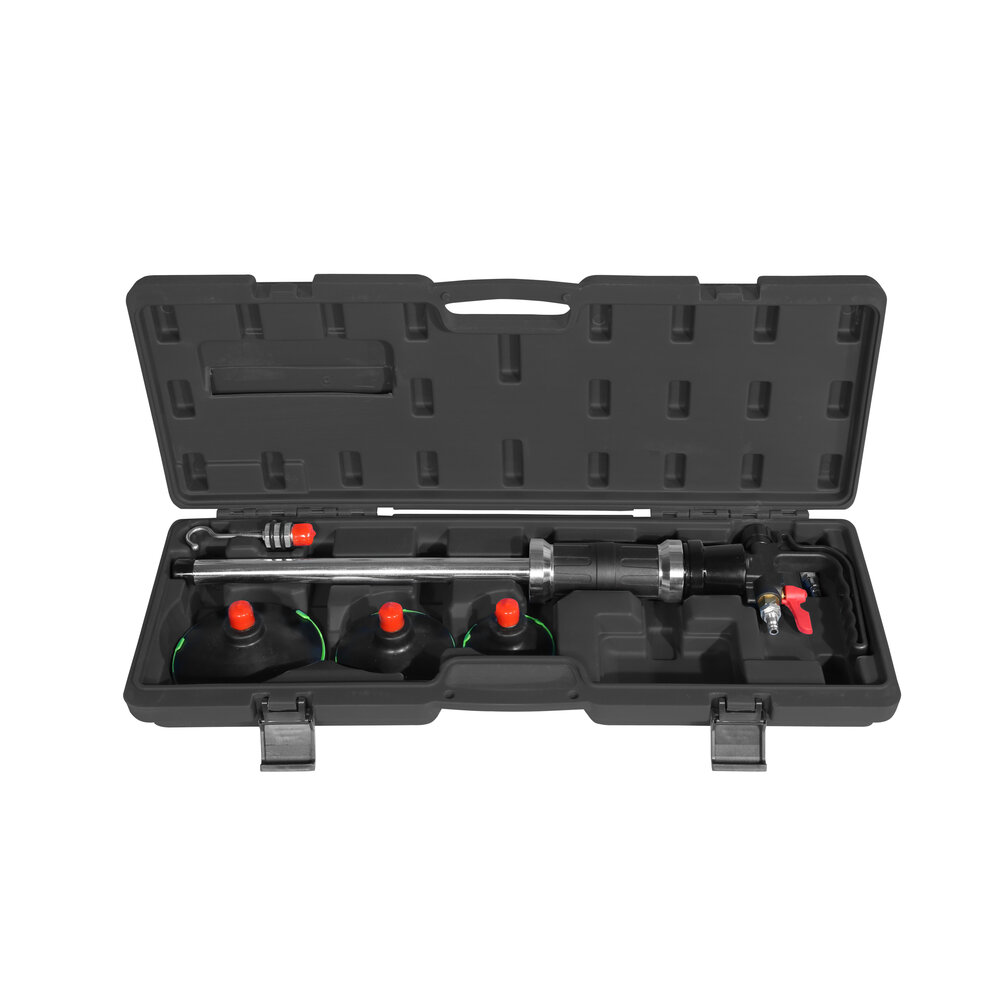

Blow-Molded Carry Case: Kept organized and protected in a custom heavy-duty plastic storage case for easy portability across workshop bays.
Specifications
| Attribute | Technical Specification |
| Brand | Telwin |
| Part / Item Code | 804695 |
| Operating Mechanism | Pneumatic Venturi Vacuum / Slide Hammer |
| Minimum Air Pressure | 4 bar (~58 PSI) |
| Included Suction Cup Diameters | Ø 75 mm, Ø 100 mm, Ø 125 mm |
| Gross Weight | 4.56 kg |
| Included Accessories | Vacuum Set + Hook (Code 804716), Plastic Storage Case |
| Primary Applications | Door panels, side quarter panels, roofs, light commercial vehicles |
Frequently Asked Questions (FAQ)
Q: Do I need a specific air compressor to run this tool? A: The vacuum dent puller requires a standard compressed air line supplying a minimum operating pressure of 4 bar (~58 PSI) to create an adequate vacuum seal.
Q: Will this tool work without damaging the paint job? A: Yes. Because it relies on pneumatic suction rather than welded studs, pins, or glue, it leaves the factory paint coat, clear coat, and protective layers completely intact.
Q: What sizes of dents is this tool best suited for? A: It is designed for medium to large-surface dents on doors, roofs, and side panels. For sharp creases or micro-dents, traditional spot-welded pulling systems or glue tabs may be required.
