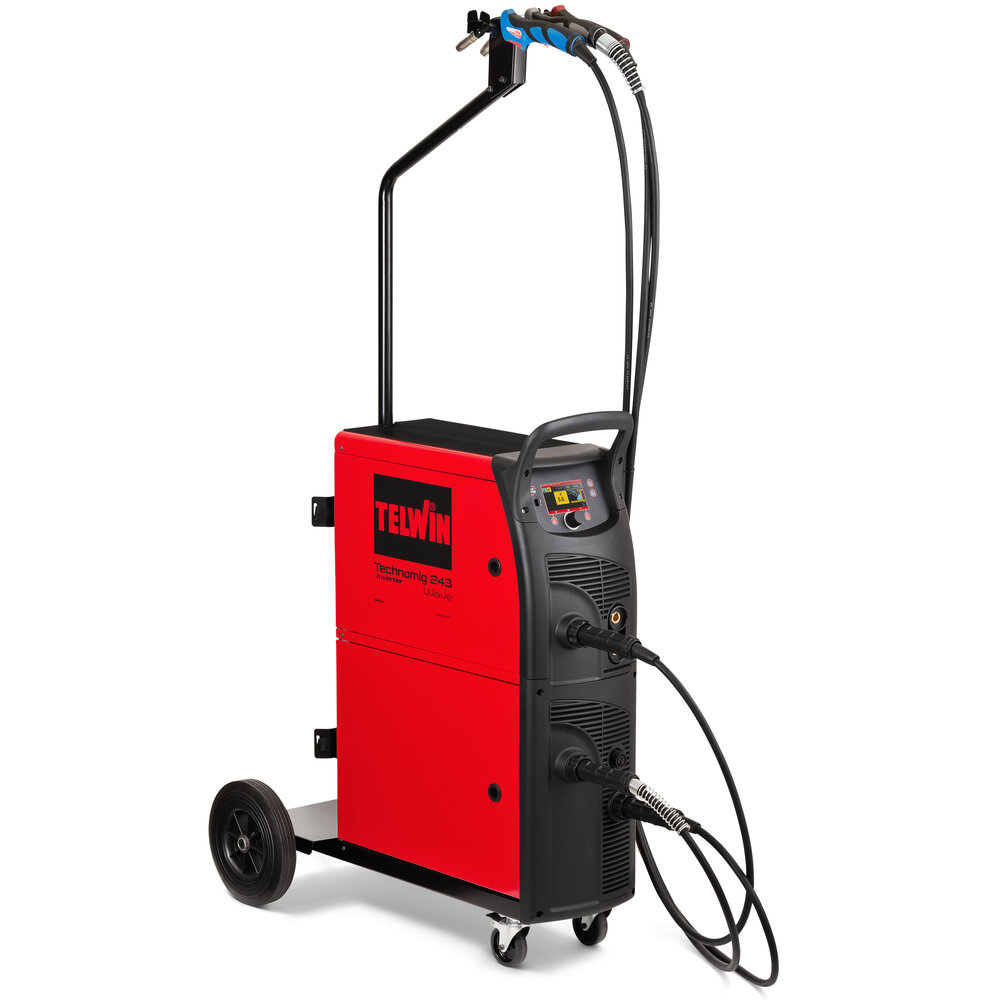

TECHNOMIG 243 WAVE #TW-816066

TECHNOMIG 243 WAVE #TW-816066

somdn_product_page
Category:

Description

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
It is particularly suitable for use in body shops and allows the immediate use of three different torches. This feature enables the user to work directly on different materials without any need to change either the torch or the wire spool (3 coil storage: 1/ 5 kg max and 2/15kg max).
Each torch can be dedicated to welding specific materials such as steel, high-strength steel (HSS), stainless steel, aluminum, and brazing of galvanized metal sheets (AB Pulse).
The WAVE OS system makes welding operations customizable to suit customer-specific requirements; traceable and analyzable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters and the presence of specific programs for the materials to weld (pulsed for aluminum, with low thermal transfer for thin surfaces).

Features:

  • 55 customizable programs;
  • continuous and pulsed functioning;
  • 3 torches always ready for use;
  • user-friendly interface with TFT color screen;
  • WAVE OS operating system with pulsed welding programs for specific materials (AB Pulse for aluminum and galvanized sheet metal) and low thermal transfer for thin materials (ATC).

Complete with 2 MT15 torches, 1 MT25 torch, cable, and earth clamp.

TECHNICAL DATA
CODE 816066
SINGLEPHASE MAINS VOLTAGE 230 V
MAINS FREQUENCY 50 / 60 Hz
MAX NO LOAD VOLTAGE IN DC 96 V
CURRENT RANGE IN DC 20 - 220 A
MAX CURRENT DC EN60974-1 180 @ 20% A
CURRENT 35% DC 135 A
DC CURRENT AT 60% 100 A
MAX ABSORBED CURRENT 32 A
ABSORBED CURRENT AT 60% 16 A
MAX ABSORBED POWER 5 kW
ABSORBED POWER AT 60% 2.3 kW
EFFICIENCY 84 %
POWER FACTOR(cosphi) (cosphi) 0.7
D.USABLE ELECTRODES IN DC 1.6 - 4 mm
STEEL WELDING WIRE DIAMET. 0.6 - 1 mm
INOX WELDI.WIRE DIAMETER 0.8 - 1 mm
ALUM. WELDING WIRE DIAM. 0.8 - 1.2 mm
FLUX CORED WELDI.WIRE DIA. 0.8 - 1.2 mm
BRAZING WIRE DIAM. 0.8 - 1 mm
INSULATION CLASS H
PROTECTION DEGREE IP23
DIMENSIONS (LxWxH) 87 x 53 x 166.5 cm
WEIGHT 59 kg


SUPPLIED ACCESSORIES

742180 MT15 MIG TORCH 3M (RED)
742944 MT15 MIG TORCH 3M (BLUE)
742784 MT25 MIG TORCH 3 M
742575 FEED ROLL 2R 0,6FE-0,8FE "F"
742576 FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"
722167 FEED ROLL 4R 1,0AL-1,2AL "P-K"
742984 WIRE GUIDE HOSE Ø 1.0-1.2 4M AL
903690 ACCESSORY
