DIGITAL MODULAR 230 #TW-823016

DIGITAL MODULAR 230 #TW-823016

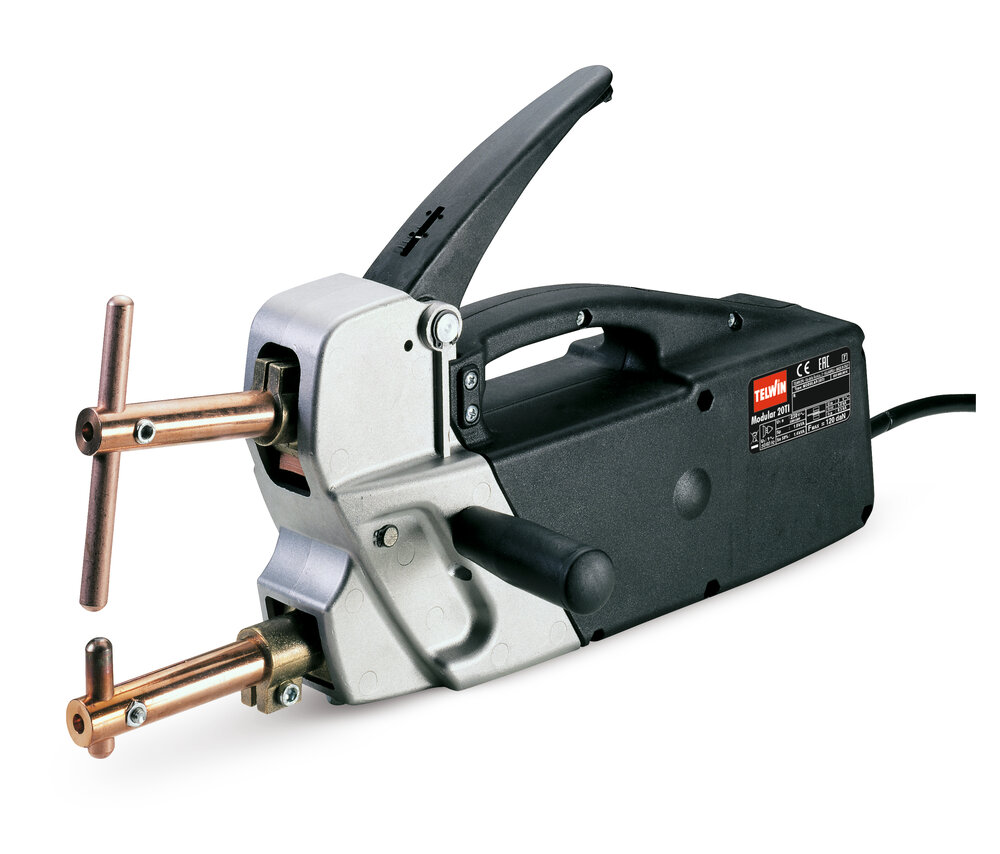

The Telwin Digital Modular 230 is a microprocessor-controlled spot welding machine designed to make panel welding easier, cleaner, and more consistent. With Telwin’s Fuzzy Logic control system, it automatically adjusts welding time and current based on sheet thickness, which helps improve spot quality and reduces setup guesswork.

somdn_product_page
Categories: , Tags: , , , , , , , , , , ,

Description

The Digital Modular 230 is built for workshop users who need reliable spot welding performance on sheet metal up to 2 + 2 mm thick. It supports both continuous and pulse operation, making it suitable for high-strength steel, galvanised sheets, and oxidised sheet metal where more control is needed.



Its microprocessor control system simplifies operation while helping deliver stronger, more consistent welds. The machine also features adjustable arm pressure from 40 to 120 kg, thermal protection, and an ergonomically designed insulated handgrip for safer and more comfortable use. With a compact portable format and low weight, it fits well into body shops, fabrication areas, and maintenance workshops.

Key Features

  • Microprocessor-controlled spot welding machine

  • Fuzzy Logic control system for easier use and improved weld quality

  • Automatic adjustment of welding time and current based on sheet thickness

  • Suitable for sheets up to 2 + 2 mm thick

  • Continuous and pulse welding modes

  • Pulse mode suitable for HSS, galvanised, and oxidised sheet metal

  • Adjustable arm pressure from 40 kg to 120 kg

  • Thermally insulated handgrip

  • Thermal protection



Specifications

Specification Details
Model Digital Modular 230
Voltage 230 V single phase
Frequency 50/60 Hz
Max Absorbed Power 13 kW
Rated Power 2.3 kW at 50%
Mains Fuse 25 A
Power Factor 0.9 cosphi
Max Spot-Welding Current 6300 A to 6900 A
Max Welding Thickness 2 + 2 mm
Open Circuit Voltage 2.5 V
Duty Cycle 1.5%
Insulation Class B
Protection Degree IP20
Dimensions 44 x 10 x 18.5 cm
Weight 10.3 to 10.5 kg

Product Benefits

This machine is a strong fit for automotive body repair, light fabrication, and maintenance work where consistent spot welds matter. The pulse function gives extra control on coated and high-stress steels, while the automatic parameter adjustment reduces user error and speeds up setup. Its compact size and modest weight also make it easy to move around the workshop.



What thickness can it weld?
It is suitable for spot welding sheets up to 2 + 2 mm thick.

Does it have automatic settings?
Yes. It automatically adjusts welding time and current based on the sheet thickness.

Can it weld coated or high-strength steel?
Yes. Pulse mode is suitable for HSS, galvanised, and oxidised sheet metal.

Is it portable?
Yes. It is compact and weighs about 10.3 to 10.5 kg.

Does it have safety protection?
Yes. It includes thermal protection.
